<h3 style="white-space:pre-line">Interference Cancellation System</h3>
<p>Electronic warfare environments pose a significant challenge for military communication systems, where jamming threats degrade signals, introduce noise and cause disconnections.</p>

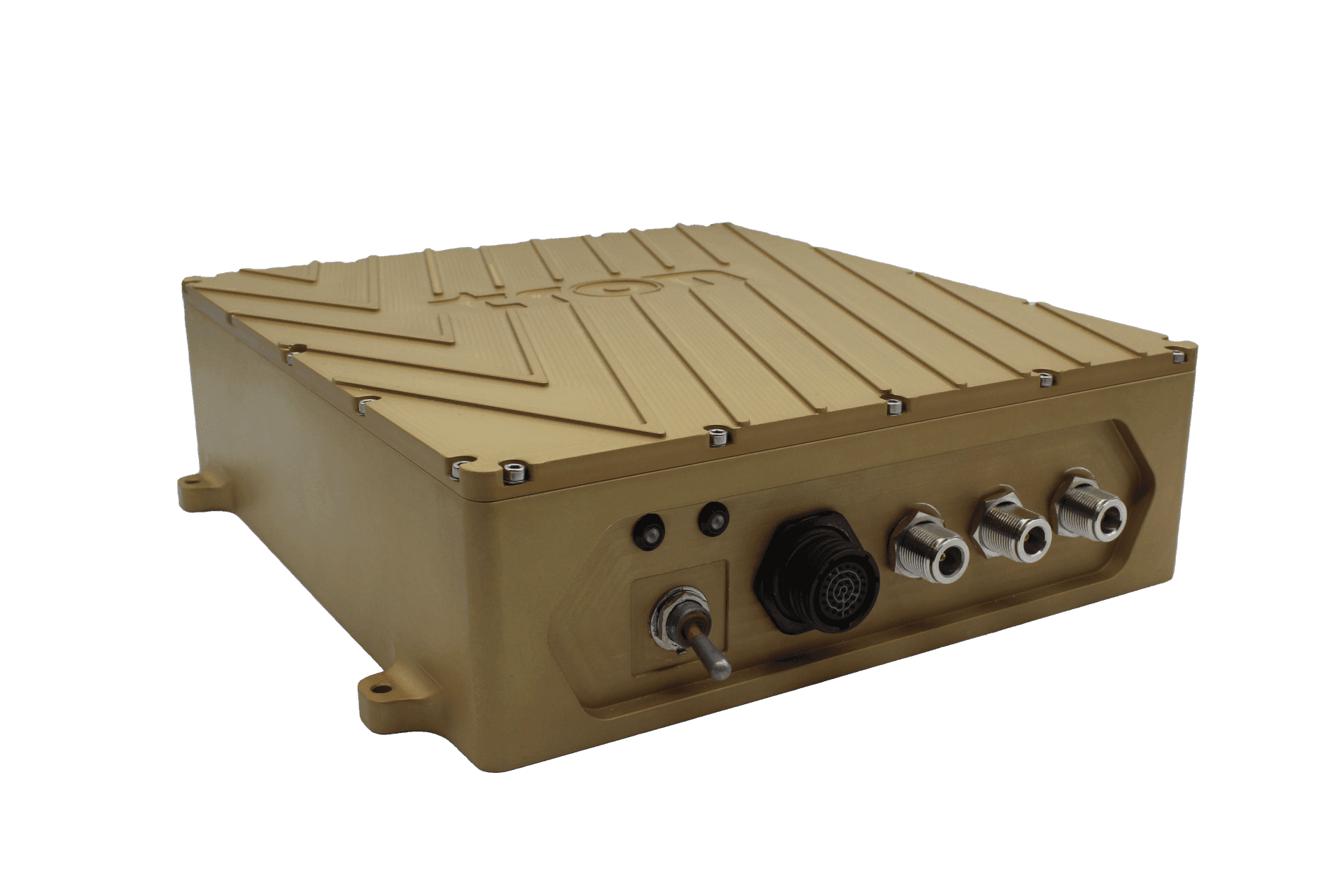

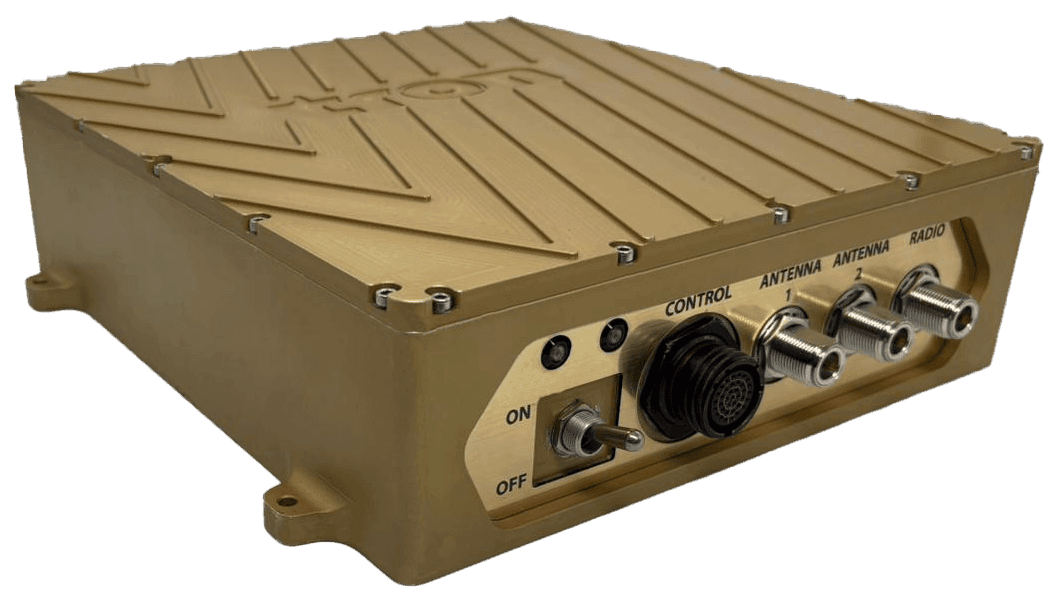

<p>ICAS Interference Cancellation System  provides a robust interference cancellation solution, ensuring uninterrupted and secure communications in high-threat environments.</p>
<p><strong>Technical Specifications:</strong></p>
<ul style="list-style-type:circle">
<li>Frequency Options in sub-6 GHz range</li>
<li>4 MHz Channel Bandwidth</li>
<li>80 dB In-band* Suppression</li>
<li>140 dB Out-of-band* Suppression</li>
<li>10 Watt (max.) Input Power</li>
</ul>
<p class="small">* Band refers to 4 MHz channel.</p>

<h3>Electronic Warfare and Jamming Challenges</h3>
<p class="normal">Jamming is a common challenge in electronic warfare, posing significant threats to tactical radios, radar systems, and military sensors.</p>
<p>Jamming signals lead to noise, signal degradation, and loss of communication. In particular, broadband jamming disrupts all communication channels, affecting both friendly and enemy signals.</p>
<h3>ICAS for Uninterrupted Communication</h3>
<ul>
<li>Capturing a sample of the interfering signal and analyzing its characteristics.</li>
<li>Extracting the signal of interest from the received transmission.</li>
<li>Applying advanced processing to suppress jamming signals up to 80 dB within the 4 MHz operational channel As shown in the Figure.</li>
<li>Operating at frequencies sub-6 GHz range in different versions, enabling wide-range protection.</li>
</ul>
