<h3 style="white-space:pre-line">HF RF Switch</h3>

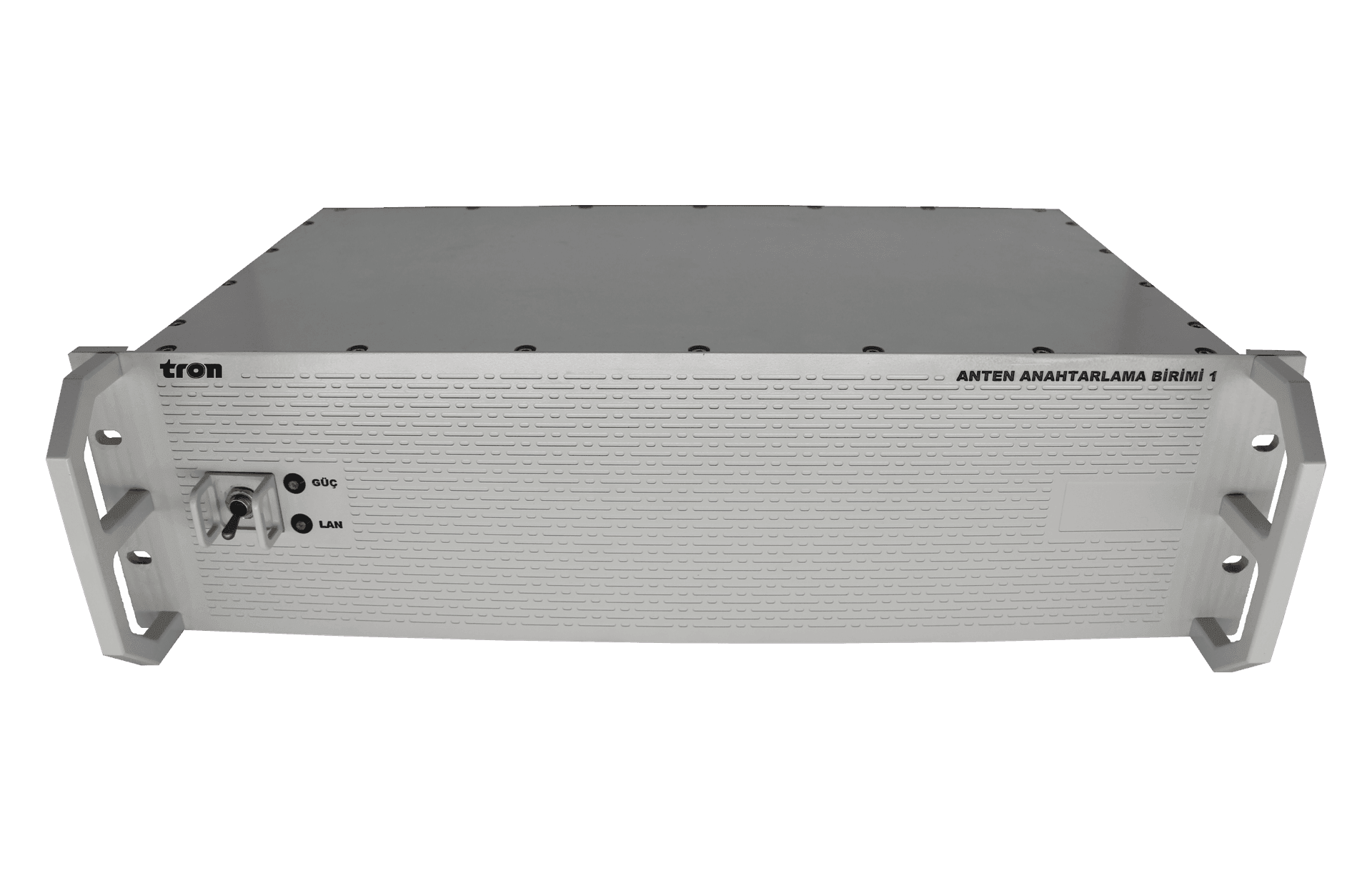

TRDF-30-8-8 is a multi-purpose RF routing device customized for DF (Direction Finding ) Systems, operating in 2-30MHz frequency range with 8 antenna inputs ports to 8 HF receivers in blocking RF switch matrix configuration. It is compatible with Crossed Loop and Monopol antennas.
8 input ports are dedicated to crossed-loop antennas. Power supply (12VDC) and control signals are generated to each crossed-loop antenna by 8 MIL-DTL-38999 compliant circular connectors.Remote control via TCP/IP enables switch matrix configuration.
Network capable Built-in-Test (BIT) option enables continuous remote device monitoring of internal voltages, antenna ports, internal operating temperatures.
Features:
<ul style="list-style-type:circle">
<li>8 antenna inputs, 8 RF outputs</li>
<li>Dedicated RF input for calibration</li>
<li>Switchable RF amplifiers</li>
<li>Surge and overvoltage protection on each RF port</li>
<li>High Port-to-Port Isolation: Ensures minimal crosstalk between outputs</li>
<li>Compliant with MIL-STD-461E and MIL-STD-810G</li>
<li>19-inch EIA housing with superior EMI shielding</li>
</ul>
Applications:
SIGINT, COMINT, Electronic Warfare
