<h3 style="white-space:pre-line">VHF/UHF RF Switch Matrix</h3>

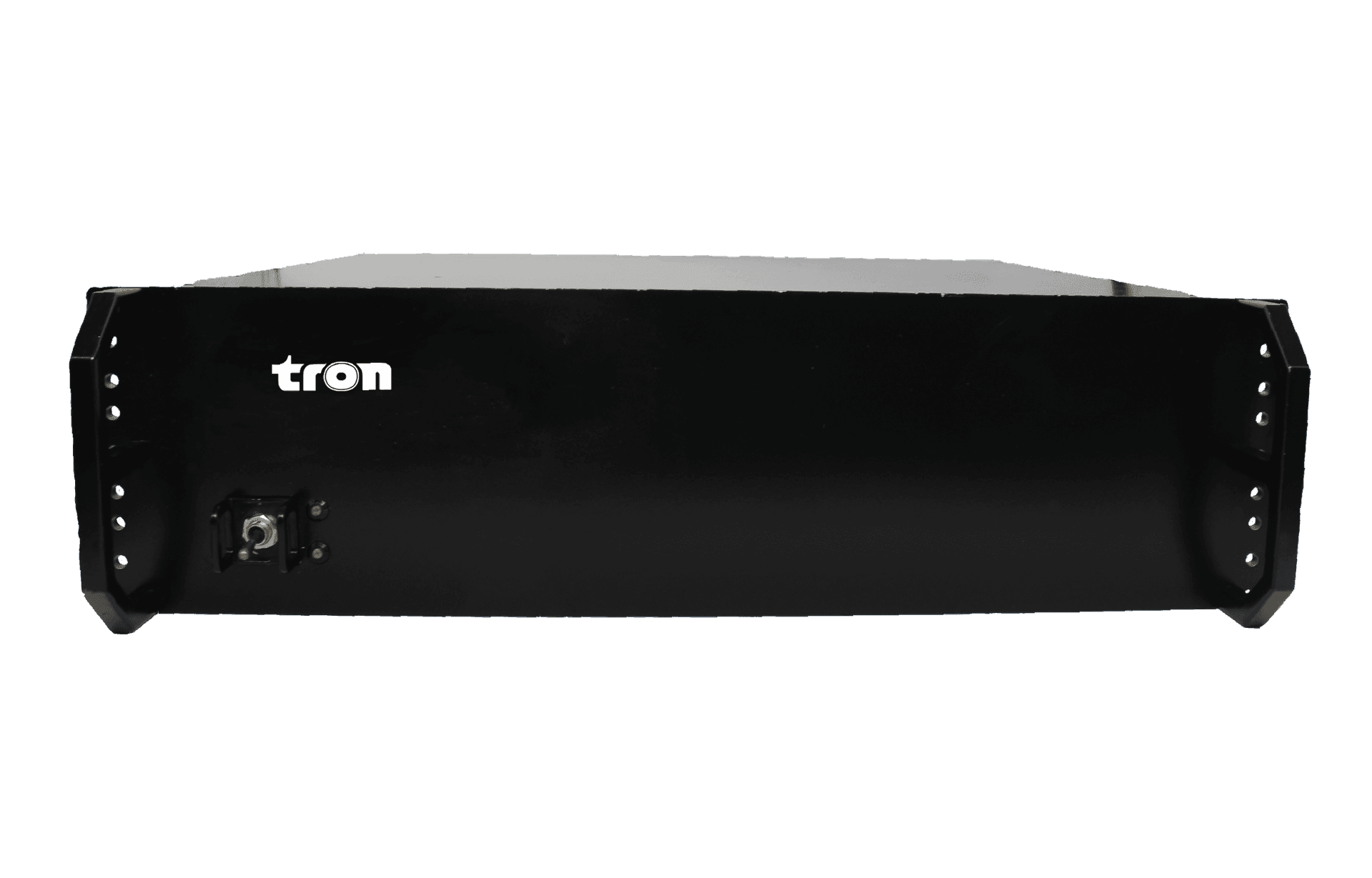

TRDF-3000-28-18 is a high-performance H/V/UHF RF switch matrix for Direction Finding (DF), RF monitoring, and signal analysis. Operating over 2–3000 MHz, it offers 28 RF inputs and 18 RF outputs with optimized signal path integrity.
TCP/IP remote control enables complete switch-matrix routing, per-port filter selection, and preamplifier management. A switchable low-noise amplifier ensures wide dynamic range, while the design delivers low noise figure, high intermodulation suppression, and excellent port-to-port isolation.
The network-enabled Built-In Test (BIT) continuously monitors voltages, antenna ports, and internal temperatures.
Features:
<ul style="list-style-type:circle">
<li>3 sub-bands 28 Antenna Inputs: (12×2-30 MHz, 8×30-500 MHz, 8×500-3000MHz) for max. selectivity</li>
<li>3 sub-bands 18 RF outputs (9×2-30 MHz, 8×30-500 MHz, 1×500-3000MHz</li>
<li>Seperate montioring output</li>
<li>Surge and overvoltage protection on each RF port</li>
<li>High Port-to-Port Isolation: Ensures minimal crosstalk between outputs</li>
<li>RF blanking option</li>
<li>Compliant with MIL-STD-461E and MIL-STD-810G</li>
<li>19-inch EIA housing with superior EMI shielding</li>
</ul>
Applications:
SIGINT, COMINT, Electronic Warfare
