Ultra-Broadband 6GHz RF Switch Matrix

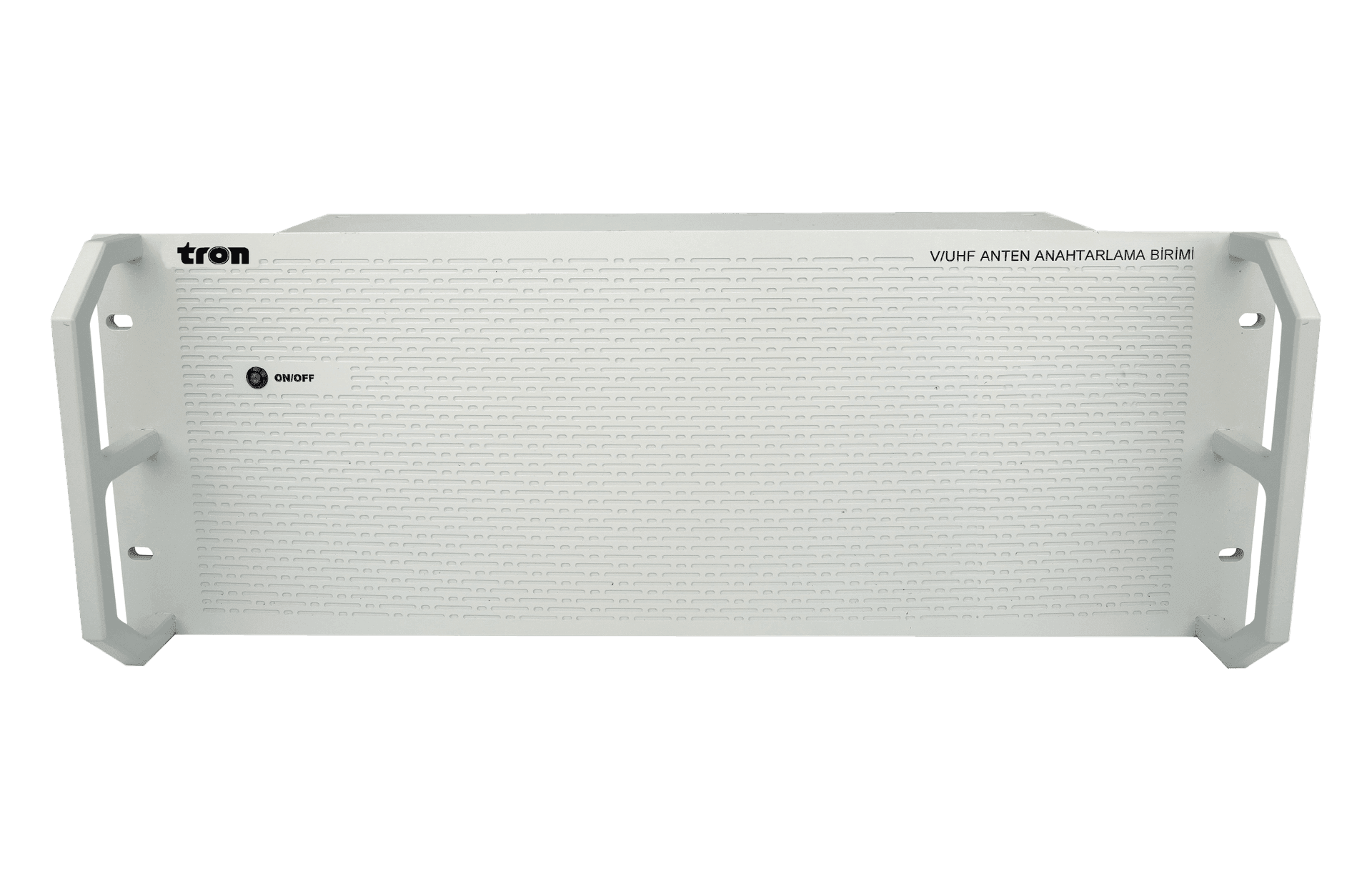

TRDF-6000-29-22 is a high-performance RF switching matrix for Direction Finding (DF) systems. Covering the 1–6000 MHz range, it provides 29 RF inputs and 22 RF outputs with optimized input/output configurations across four discrete frequency bands. The design ensures high port-to-port isolation, eliminating crosstalk between inputs, channels, and outputs. An external calibration line is routable to any of the 22 RF outputs. The rugged, rack-mountable chassis is fully compliant with MIL-STD-810G environmental standards and qualified for airborne platforms, guaranteeing reliability in the most demanding conditions.

Features:

  • RF Inputs: Four sub-bands covering 1–6000 MHz for maximum selectivity
  • RF Outputs: 1–30 MHz, 1–6000 MHz, 20–500 MHz
  • External Calibration Inputs: For 1–30 MHz and 20–6000 MHz bands
  • Switchable RF amplifiers and filters
  • Surge and overvoltage protection on each RF port
  • Remote control is available via TTL interface
  • Compliant with MIL-STD-461E and MIL-STD-810G
  • 19-inch EIA housing with superior EMI shielding

Applications:

SIGINT, COMINT, Electronic Warfare
