Ultra-Broadband 8GHz Hybrid RF Switch Matrix & Multicoupler

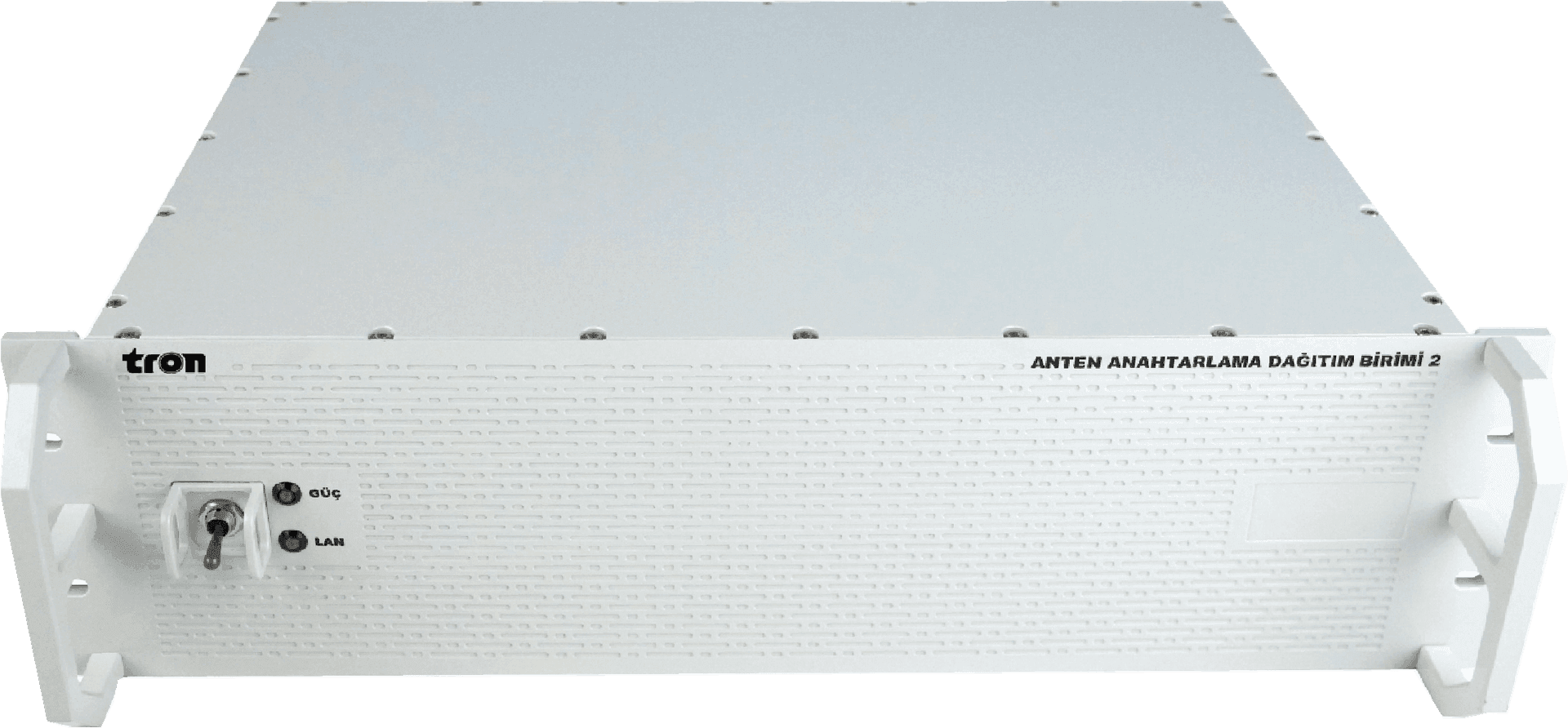

TRFMC-6000-12-8, is a high-performance ultra-broadband (6 GHz) RF switching matrix designed to route multiple-branded antenna inputs to 12 wideband receivers for Direction Finding (DF) and RF monitoring applications. Operating from 30 MHz to 6 GHz, it provides 8 RF inputs and 12 RF outputs, fully meeting military standards for reliability and durability in harsh operational environments.

A switchable low-noise input amplifier ensures a wide dynamic range across the entire frequency band, while the design delivers a low noise figure, high intermodulation suppression, and exceptional port-to-port isolation. Remote TCP/IP control enables full switch-matrix configuration and per-port preamplifier activation. The network-compatible Built-In Test (BIT) system supports continuous remote monitoring of internal voltages, antenna ports, and operating temperatures.

Features:

• 4 sub-bands Antenna Inputs: (2×100–550 MHz, 2×80–2000 MHz, 2×80-1300 MHz, 2x 2000-6000MHz) for max. selectivity
• Switchable RF amplifiers and filters
• Surge and overvoltage protection on each RF port
• High Port-to-Port Isolation: Ensures minimal crosstalk between outputs
• Compliant with MIL-STD-461E and MIL-STD-810F
• 19-inch EIA housing with superior EMI shielding

Applications:

SIGINT, COMINT, Electronic Warfare
