Ultra-Broadband 6GHz RF Multicoupler

TRFMC-6000-16-3, is a high-performance broadband 6GHz ultra-broadband RF multicoupler designed to route multiple-banded antenna inputs to 16 wideband receivers for DF (Direction Finding) and RF monitoring. Operating across 20–6000 MHz, it features 3 RF inputs and 16 RF outputs, meeting military standards for reliable performance and durability in harsh operational environments.

A switchable low-noise input amplifier provides wide dynamic range across the full frequency range. The unit delivers low noise figure, high intermodulation suppression, and excellent port-to-port isolation. Remote control via TCP/IP enables signal routing configuration and preamplifier activation at each antenna port.

Features:

• 3 sub-bands Antenna Inputs: (1×20–550 MHz, 1×450–3200 MHz, 1×2800–6000 MHz) for max. selectivity
• Switchable RF amplifiers & filters per each channel
• High Port-to-Port Isolation: Ensures minimal crosstalk between outputs
• Network-Operated Built-In-Test (BIT) Option
• Compliant with MIL-STD-461F and MIL-STD-810G

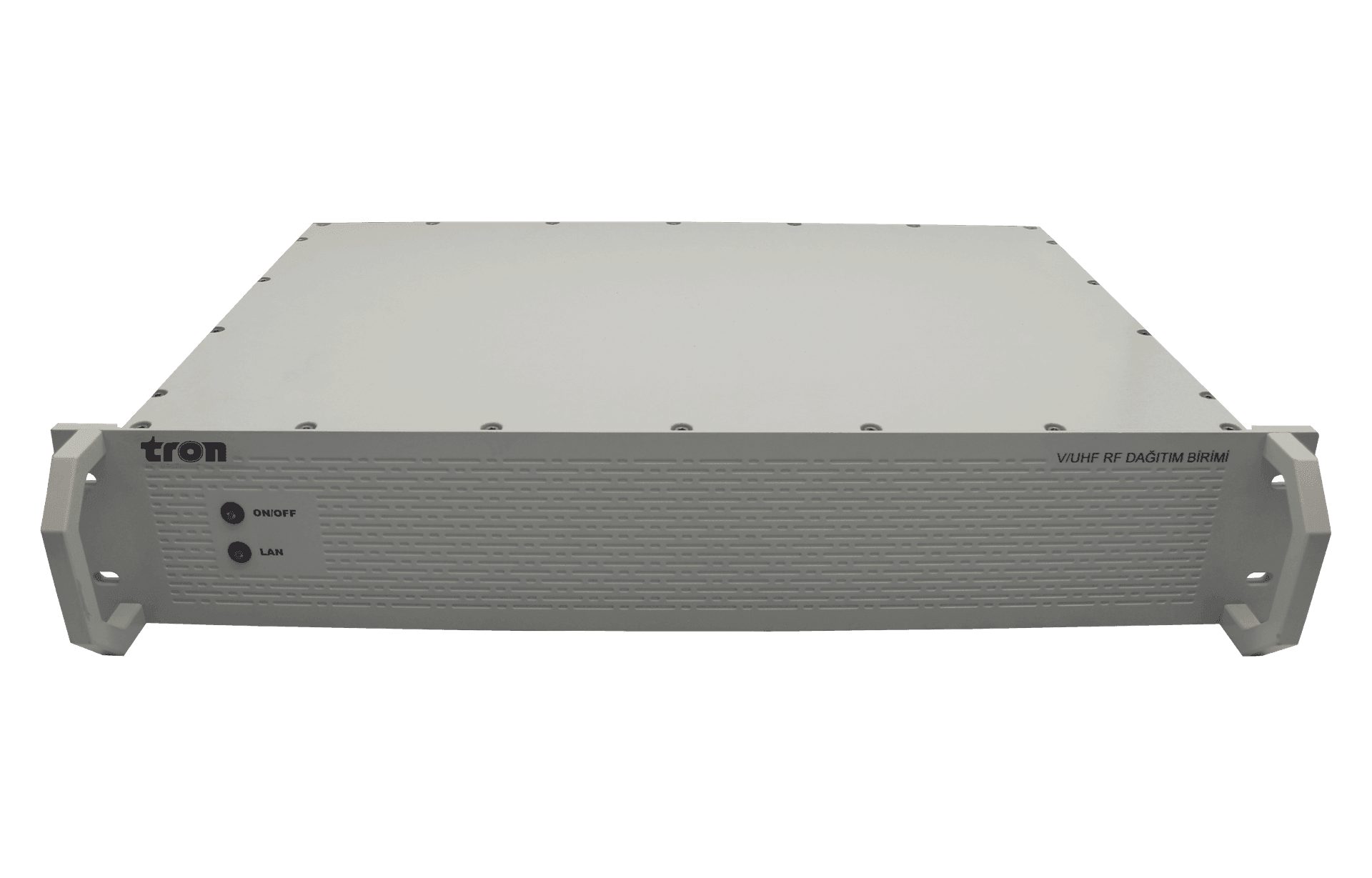

• 19-inch EIA housing with superior EMI shielding

Applications:

SIGINT, COMINT, Electronic Warfare
