<h3 style="white-space:pre-line">Ultra-Broadband 8GHz Hybrid RF Switch Matrix &amp; Multicoupler</h3>

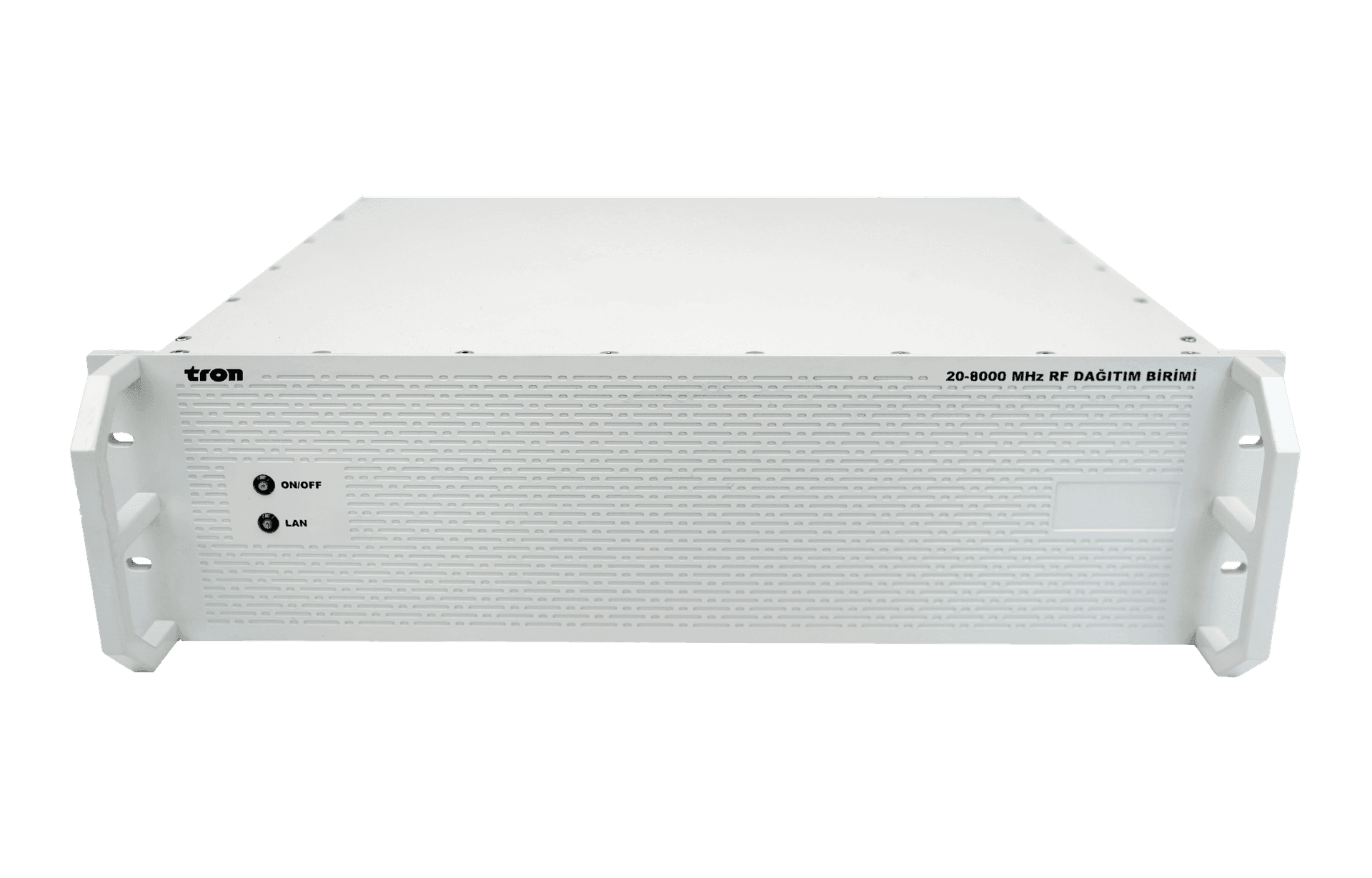

TRFMC-8000-20-5, is a next-generation, high-performance, ultra-broadband (up to 8 GHz) hybrid RF switch matrix and multicoupler engineered for routing multi-band antenna inputs to 20 wideband receivers in Direction Finding (DF) and RF monitoring applications. Covering the 20–8000 MHz frequency range, it provides 5 RF inputs and 20 RF outputs, meeting military standards for reliable operation and durability in demanding environments.
A switchable low-noise input amplifier ensures a wide dynamic range across the full operating band, delivering a low noise figure, high intermodulation suppression, and exceptional port-to-port isolation. Remote TCP/IP control enables full switch matrix configuration and per-port preamplifier activation.
Features:
<ul style="list-style-type:circle">
<li>RF Inputs: 3 sub-bands covering 20–8000 MHz for maximum selectivity</li>
<li>Switchable RF amplifiers and filters</li>
<li>Surge and overvoltage protection on each RF port</li>
<li>High Port-to-Port Isolation: Ensures minimal crosstalk between outputs</li>
<li>Compliant with MIL-STD-461F and MIL-STD-810F</li>
<li>19-inch EIA housing with superior EMI shielding</li>
</ul>
Applications:
SIGINT, COMINT, Electronic Warfare
